Commercial Complex
Pain:atrium glazing and facade must perform day and night.
Want:panels that breathe light (perforated) and carry brand identity (custom pattern / PVD color).
Metal Facade
Stainless Steel Wall Panels for Facades
Weatherproof, fully customizable stainless steel wall panels, manufactured to your drawing and shipped to site. A metal facade is the skin of a building. We make stainless steel facades that weather well and photograph beautifully — the building’s skin by day, a canvas of light by night.Get a free facade specificationOrder a sample
Home / Metal Facade - Copy
30 SECONDS TO UNDERSTAND
What Is a Metal Facade?
In plain terms: a metal facade is the metal “skin” hung on the outside of a building. It carries no load, but it decides how the building looks and how well it ages. We make stainless steel facades that are light, flat, weatherproof, and pattern-customizable.
Metal Roofing
Application Scenarios
The building's roof: from standard decks to landmark spans -structurally stable, drainage-reliable metal roofing systems.

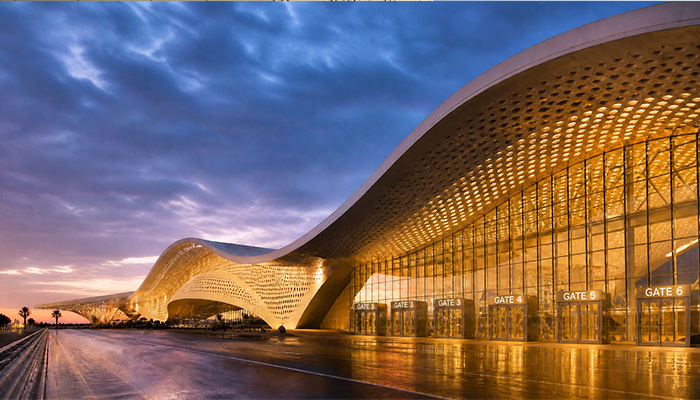

Airport Terminal
Pain:long spans, lightweight to cut load, weather resistance.
Want:honeycomb large-format panels, high flatness, built for crowds and climate.
Cultural Venue
Pain:a unique architectural language the facade must echo.
Want:etched / laser-cut custom motifs so the facade becomes part of the story.
Facade Types
Facade Types
Perforated Facade
Holes in the panel: light, air, and patterns — the facade that changes its face.
Spec:hole Ø 2–10mm, adjustable pitch, open area 10–60%, grade 304/316.
Expanded Metal Mesh
Steel sheet stretched into mesh — raw industrial feel, see-through yet wind-friendly.
Spec:thickness 1.5–3.0mm, many mesh sizes, flat or curved.

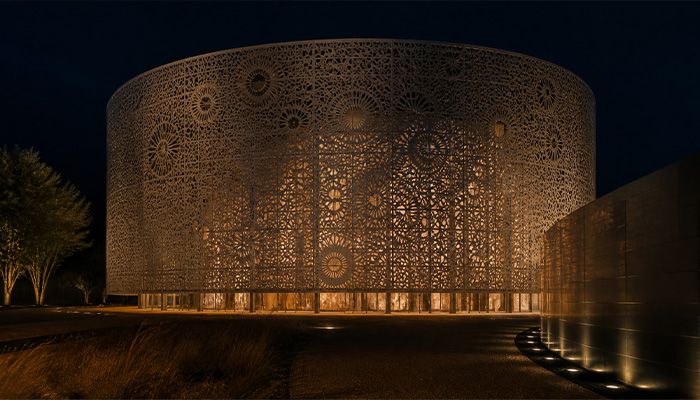

Mashrabiya Screen
Geometric cut-outs: shade and privacy — a favourite in the Middle East and hotels.
Spec:custom pattern, grade 304, flat or folded 3D.
Flat Minimal
Pure minimal color, mirror or hairline base — the most timeless.
Spec:8K mirror / No.4 hairline / PVD solid color, thickness 0.8–2.0mm.
Embossed Textured
Rolled 3D texture — layered light and shadow you can feel.
Spec:rolled forming, custom pattern, grade 304/316.
Honeycomb Composite
Aluminum honeycomb core — big panels, light and flat, built for high-rise.
Spec:total 10–25mm, face 0.8–1.5mm stainless, size up to 1500×3000mm.
Specifications
Our Standard Facade Spec
Coastal sites must use 316, thickness by structure, max size 1500×3000mm.
| PARAMETER | Specifications | Note | |
|---|---|---|---|
 | Material | 304 / 316L | Coastal sites:316L required |
| Thickness | 0.8 – 3.0 mm | Honeycomb core panel separate | |
| Max size | 1500 × 3000 mm | Custom available | |
| Flatness | ±1mm/2m | Honeycomb panels even better | |
| Surface | 8K Mirror / No.4 Hairline / PVD Color | Can be layered | |
| Standard | JIS / ASTM / GB | Perprojectspecification | |
| Sampling | 48 hours |
50 sheets
20 days
7-day fast track
A4 Sample
A4 in 3 days
freight at cost
within 24h
BUILD YOUR COMBINATION
A Facade Is Not a Single Choice
Pick a base panel, add a surface finish, then a texture — we spec it your way.
Combo 01
Water-Ripple + Mirror → Liquid-Light Facade
Mirror base doubles the ripple’s reflection — photogenic day and night.
Combo 02
Etched + Champagne PVD → Dark-grain Gold
A low-key brand color with hidden grain up close. Root: colored stainless steel.
Combo 03
Perforated + Hairline → Breathing Screen
Hairline softens glare; holes give it a breathing rhythm.
Value & Aesthetics
Three Facades, Three Emotions
a stainless envelope unifies the design language.
Mirror-base Exterior
A mirror-finish panel mirrors the sky like still water; the facade shifts light and shadow with the sun — on a clear day, the building breathes.
Sandblasted Exterior
A sandblasted matte finish dissolves harsh sun into an even, warm glow — vast facades don't shout, yet quietly command.

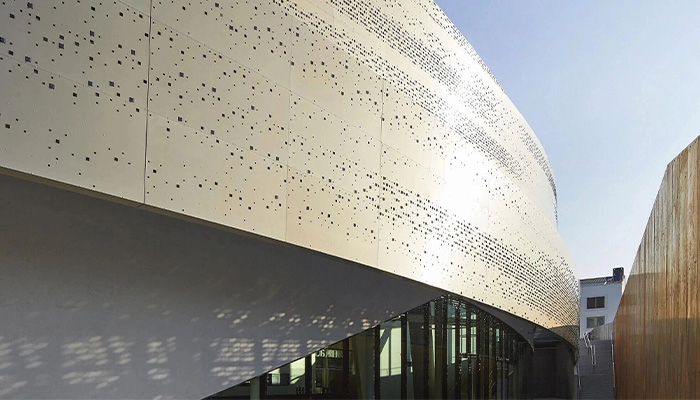

Perforated Exterior
Daylight by day, a glowing film by night. A semi-transparent screen blurs inside and out — a freedom other materials can’t give.
Decision Guide
Three Questions, Plain Answers
01
Breathability Comes from the Holes
For daylight and airflow, open area 40%+; for a semi-transparent screen, 20–30% is enough.
02
Choosing the Base Is Negotiating with Corrosion
Indoors and dry: 304 is enough. Coastal, chemical, outdoor: 316L.
03
Honeycomb Solves "Big but Rigid"
Aluminum honeycomb core between two stainless faces: stiffness, flatness within ±1mm/2m.
Project Spotlight
A Commercial-Complex Metal Facade
Perforated + honeycomb composite, champagne-gold PVD accenting the atrium. From drawing to delivered product in 4 months, facade flatness ±1mm/2m; an instant landmark at opening.
A wall that breathes became the mall’s best signage.
View All Metal Facade Cases
Capabilities, Certifications & Remote Guidance
Capabilities, Certifications & Remote Guidance
 | Full Inner Loop | 100% vertically integrated from surface lab to precision fabrication — full quality control, ~30% shorter lead time. |
 | Scale | 58,000㎡ integrated plant, 210+ engineers & surface specialists, serving 60+ countries, 24 years of architectural stainless steel expertise (founded Hangzhou Hengyu, 2001). |
 | Certifications | ISO 9001 quality system | National High-tech Enterprise | traceable material cert (MTC) | per JIS / ASTM / GB. |
 | Remote Installation Guidance | We do not install abroad, but provide 24/7 remote video technical briefing; for landmark or complex-node projects, senior specialists can be dispatched on-site for installation training and guidance. Packing lists and 3D install simulation help the product land precisely on site. |
 | Trade Terms | FOB / CIF / DDU / DDP supported; partnered with global freight forwarders for safe, on-time delivery of large architectural metal. |
Contact Us
Get a Custom Metal Façade Quote from MetalMagus
Send a rendering or detail drawing; within 48 hours we return a buildable facade spec — and ship a free sample.
